RMD/QMD

Princeton University

Jason Geller, PH.D.(He/Him)

2023-09-18

What are we going to cover?

  • Markdown: a simple text-only format for writing documents
  • R markdown: a tool for mixing R code with markdown
    • Quarto
  • Papaja: Tool for writing APA style articles in RMD
  • Apaquarto: Tool for writing APA style articles in QMD

Packages

  • If you load tidyverse you already have R markdown!
  • You should install tinytex
install.packages('tinytex')
tinytex::install_tinytex()
# to uninstall TinyTeX, run tinytex::uninstall_tinytex()

RMD is a “chimera”

Input side:

  • Write text in markdown
  • Insert code using R
  • Write “metadata” with YAML
  • Insert equation with LaTeX

RMD is a “chimera”

Output side:

  • HTML

  • DOC

  • PDF

The Problem

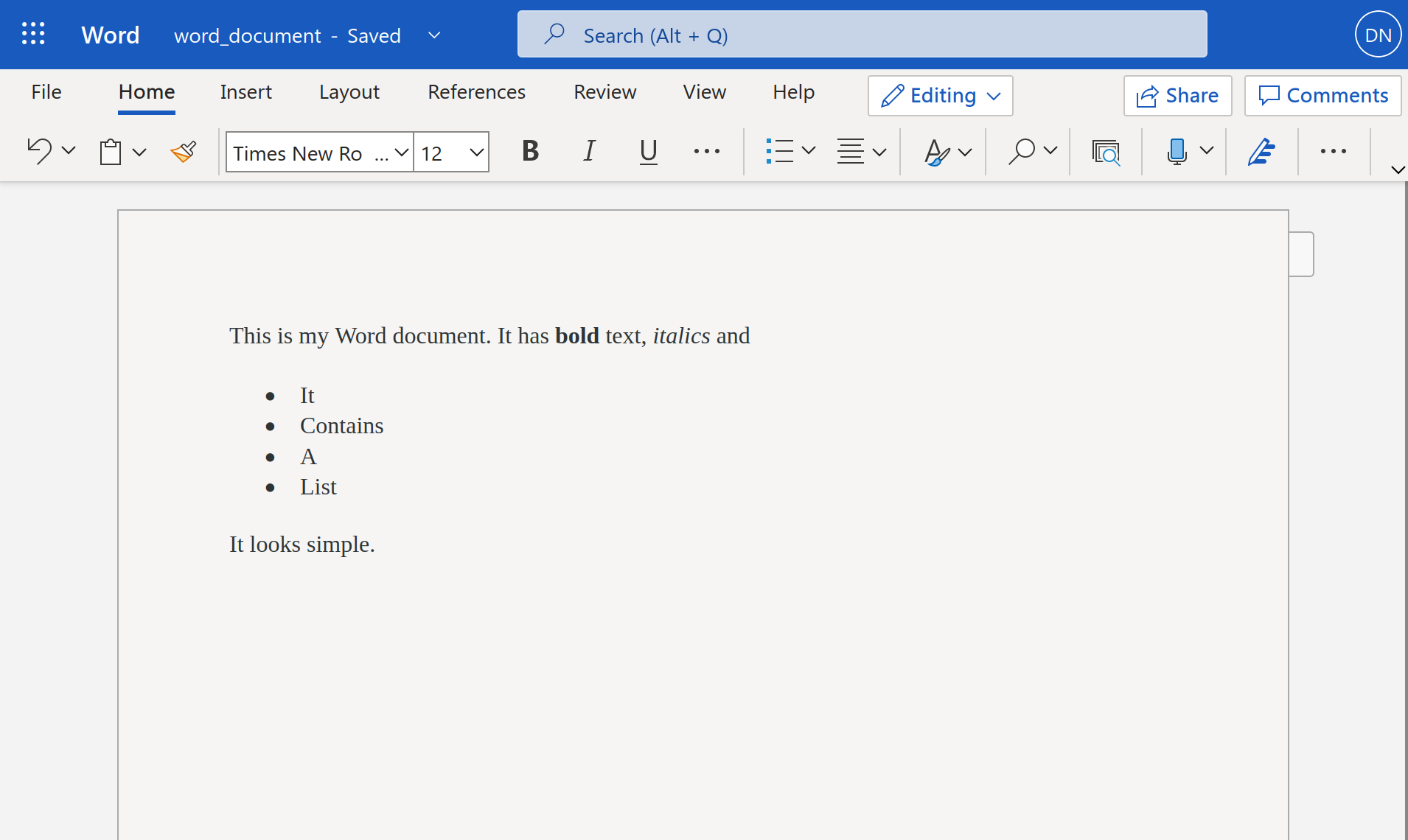

Word

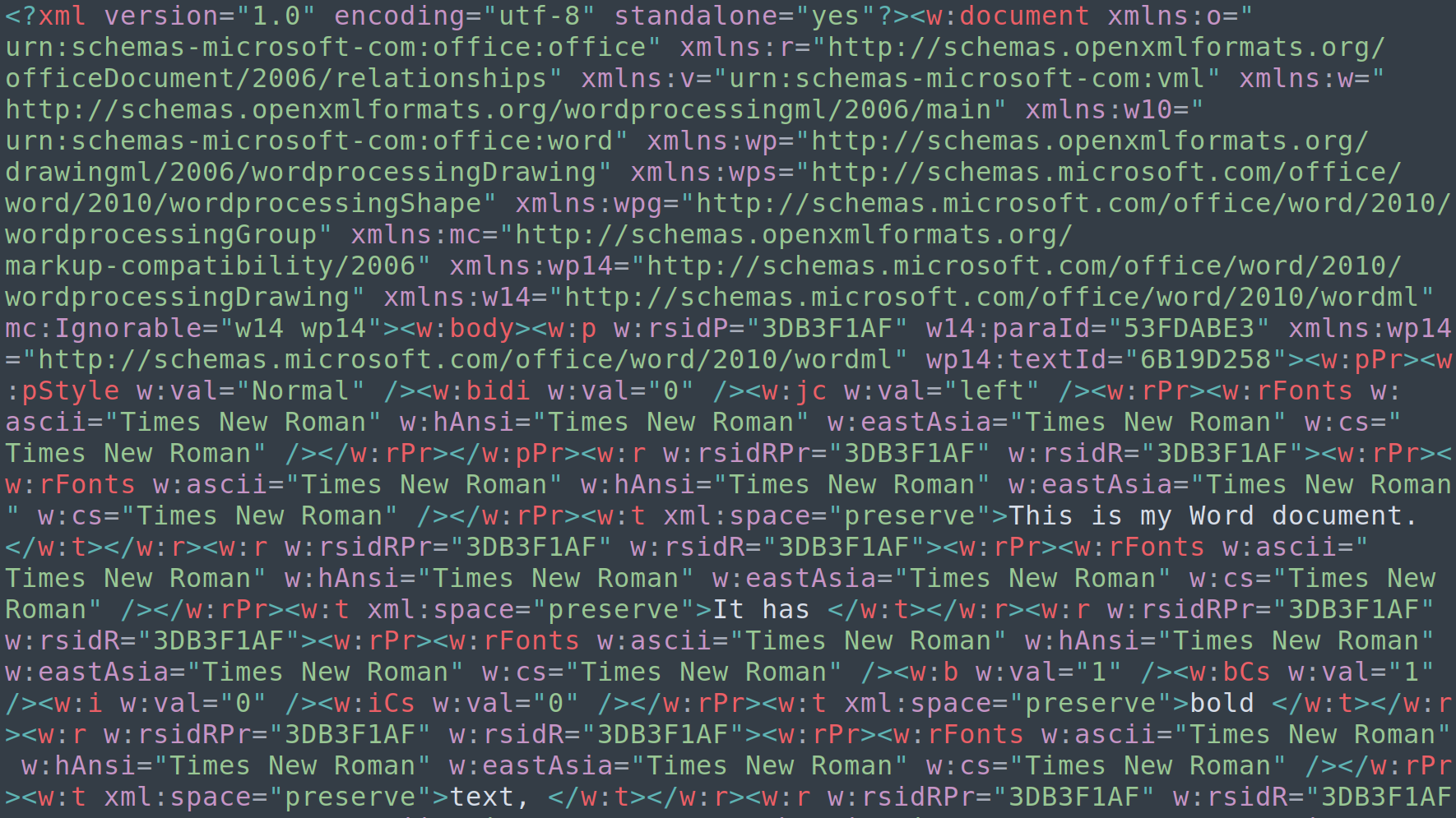

Inside

Word issues

  • A .docx file is a compressed folder with lots of files
    • Your text is buried in with a lot of formatting information
  • Not reproducible
    • Code is divorced from writing
  • Difficult to maintain
    • Errors!
  • What do I share?
    • Lack of transparency

Microsoft Excel hids errors

- Francesca Gino

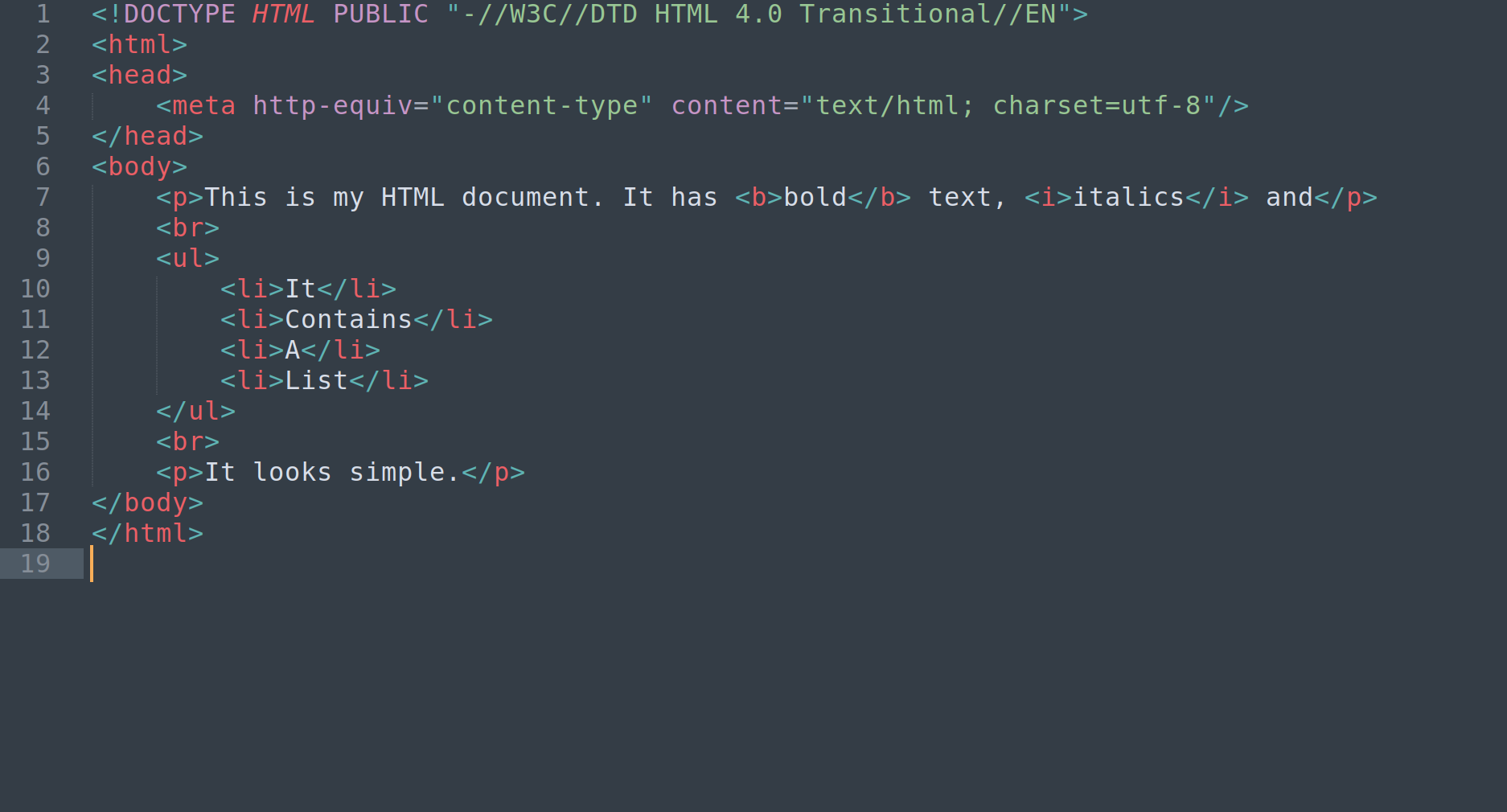

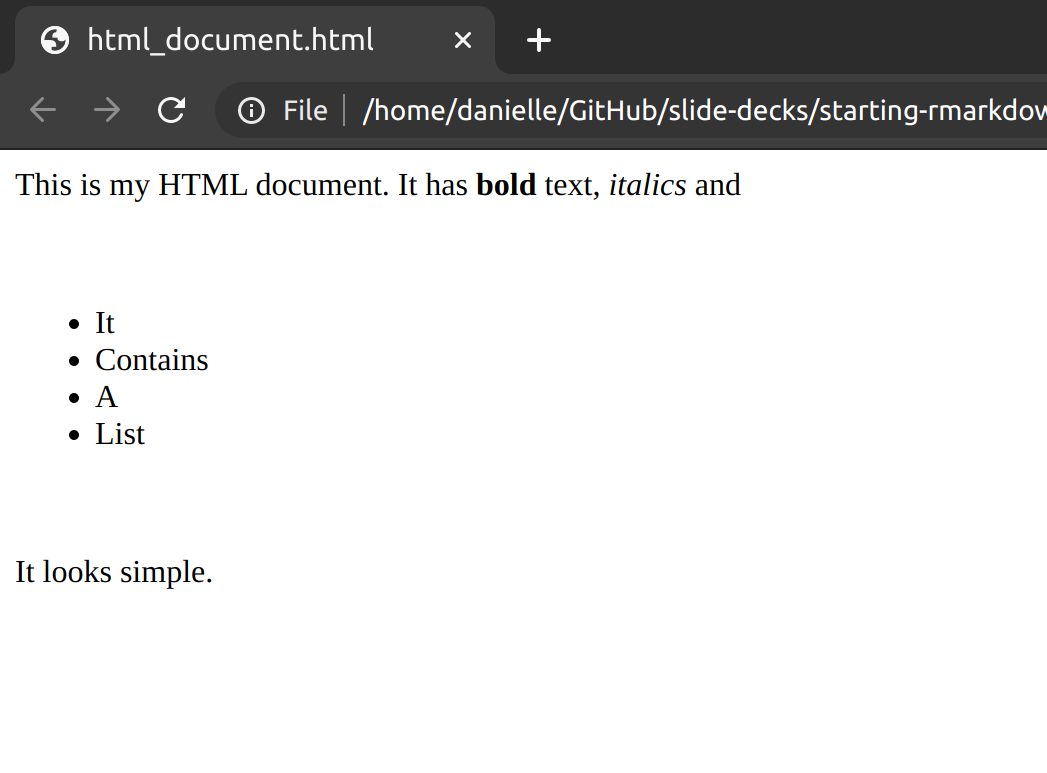

HTML documents are also complicated

Why Markdown?

What do we want?

  • Something that… you can write in plain text
  • Something that… is human readable
  • Something that… allows formatting
  • Something that… can build to something pretty

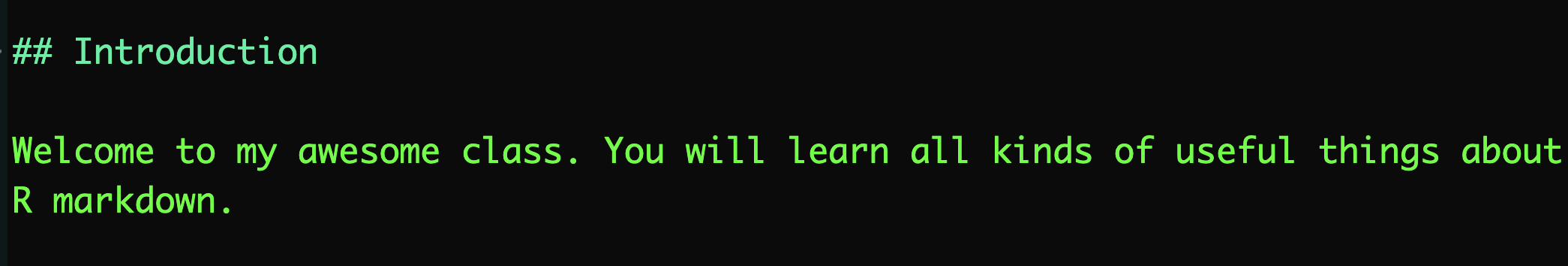

Here’s an example of a markdown document…

Introduction

Welcome to my awesome class. You will learn all kinds of useful things about R markdown.

Okaaaaay, but this seems boring?

Let me show you where it can take you

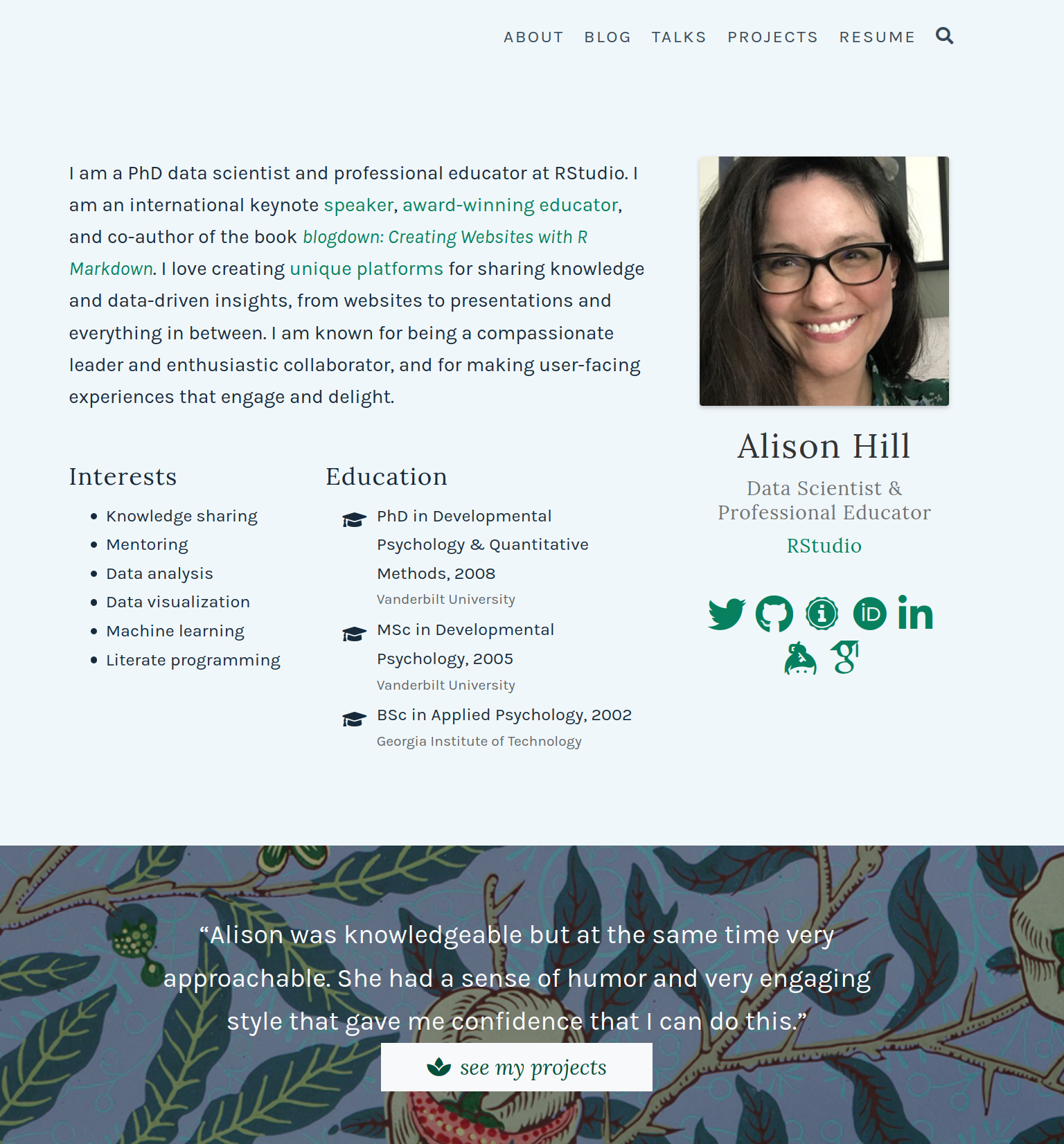

Professional websites

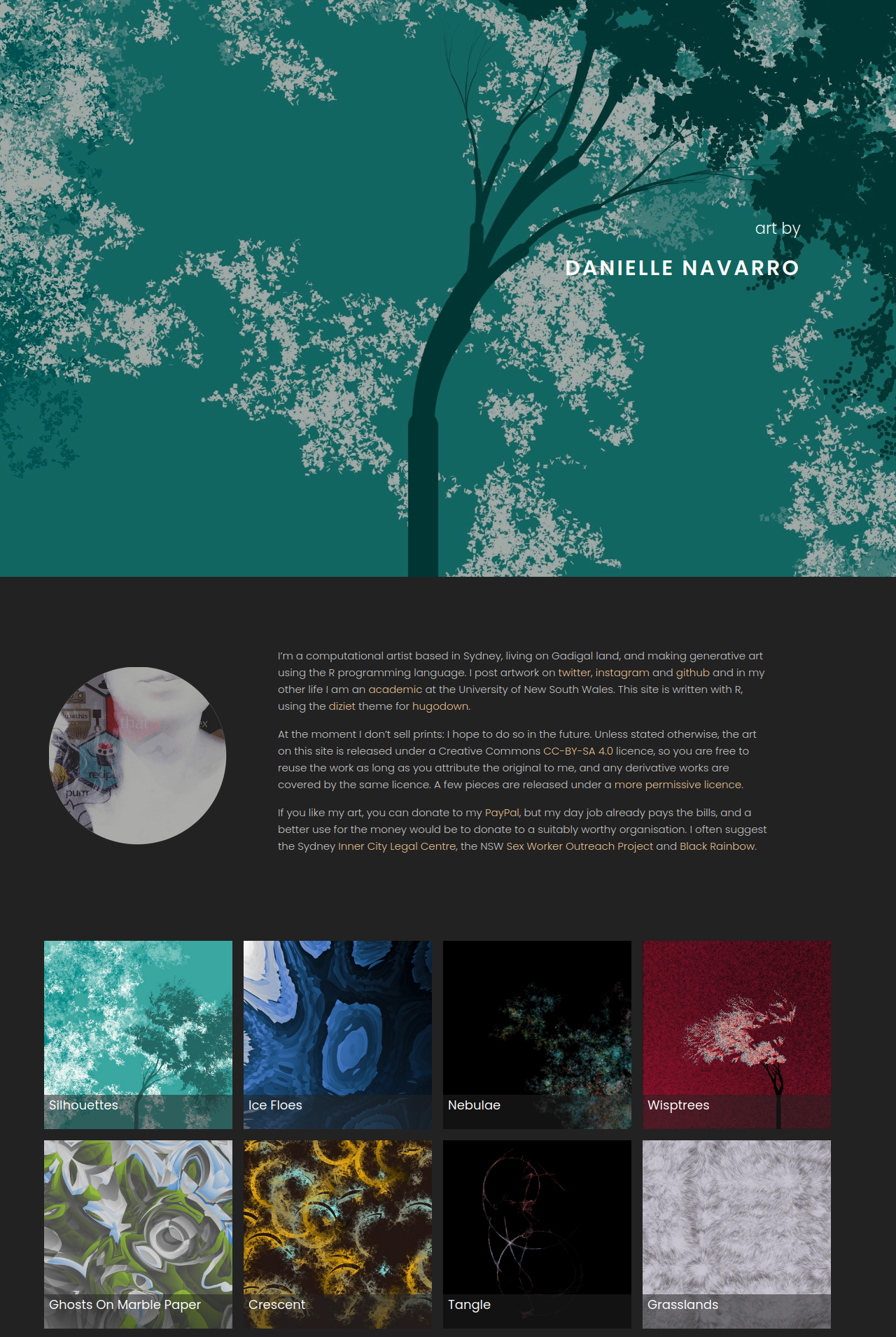

Visual blogs

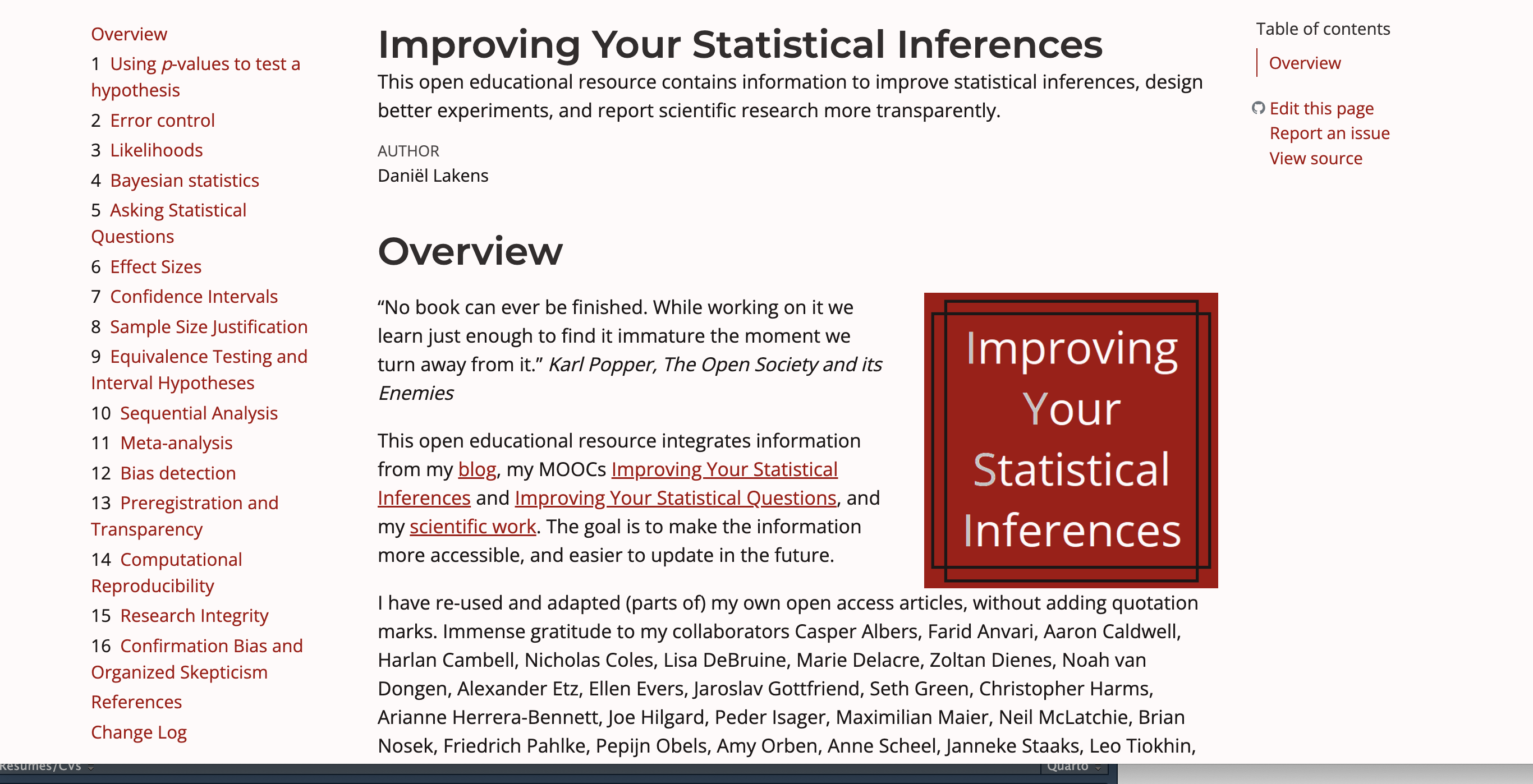

Books

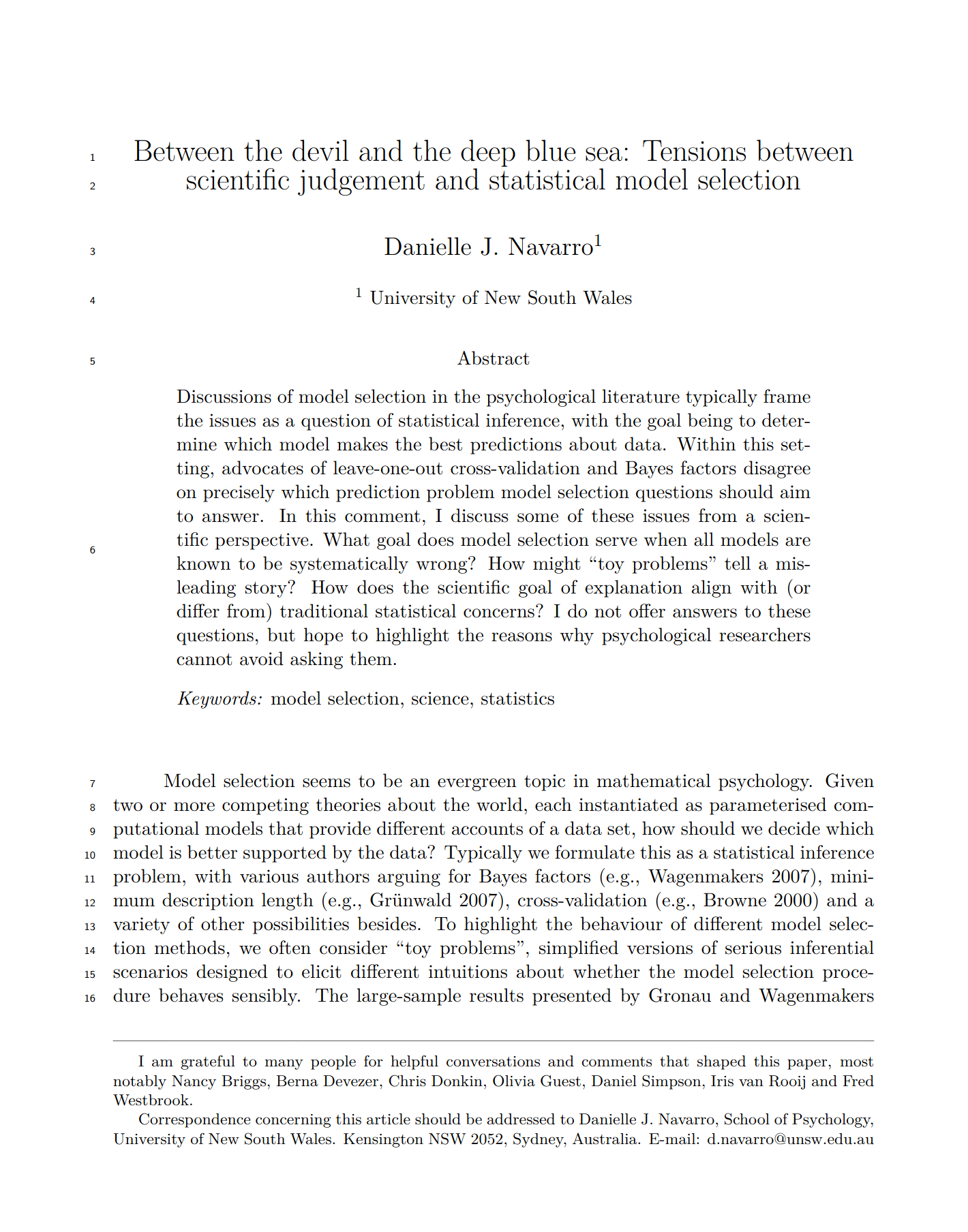

Academic papers

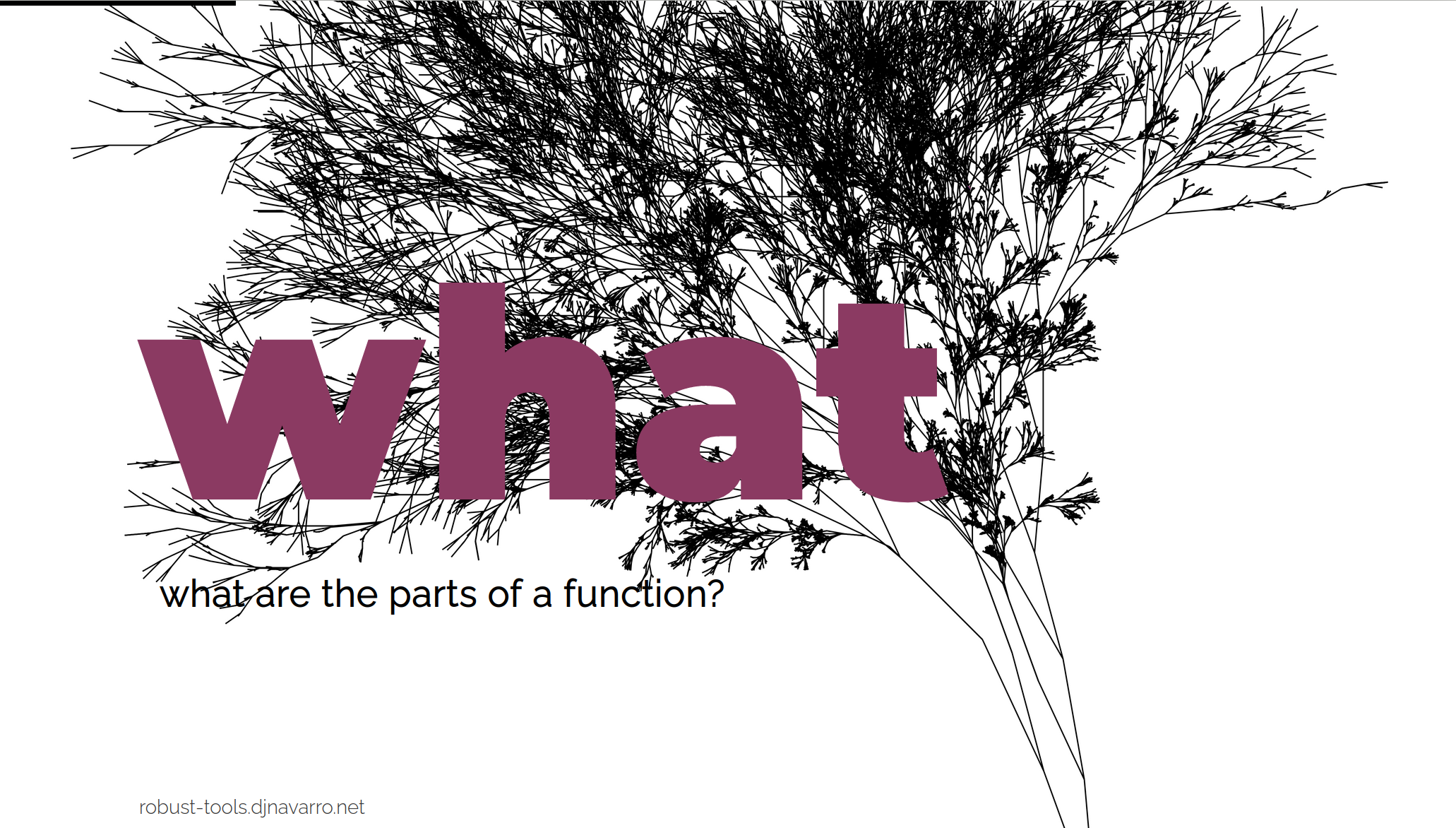

Slide decks

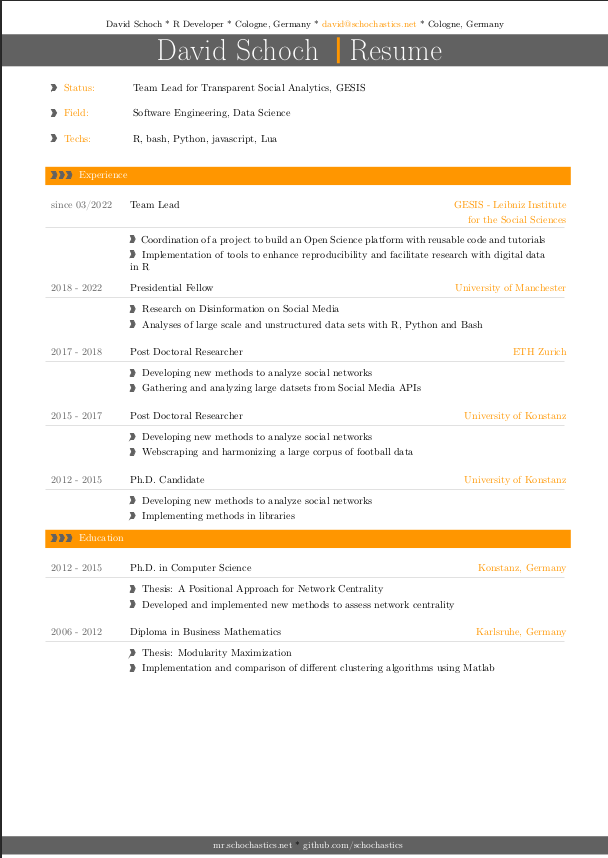

Resumes/CVs

Formatting

Header 1

  • Using a single # gives you a really large header!

Header 2

  • Using two gives you a slightly smaller header!

Header 3

…and on

Header 4

…and on

Header 5

…and on

Creating lists

You may also want to use a bulleted list!

  • just
  • like
  • this
  • one

  1. like

  2. this

  3. one

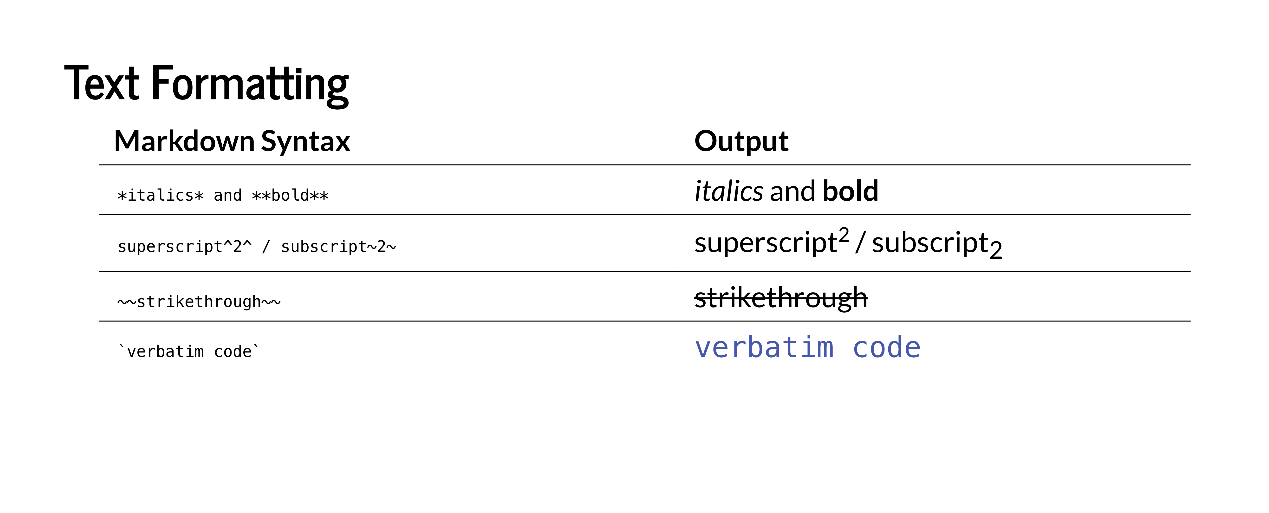

Emphasis

Images

  • Local images

    • ![](./img/)

    • ![]https:://placekitten.com/200/300)

R Markdown

What do we want?

  • Something that… lets you write text in markdown
  • Something that… lets you include R code or Python (e.g. for data vis)
  • Something that… can build to HTML, PDF, Word, etc

Live Demo

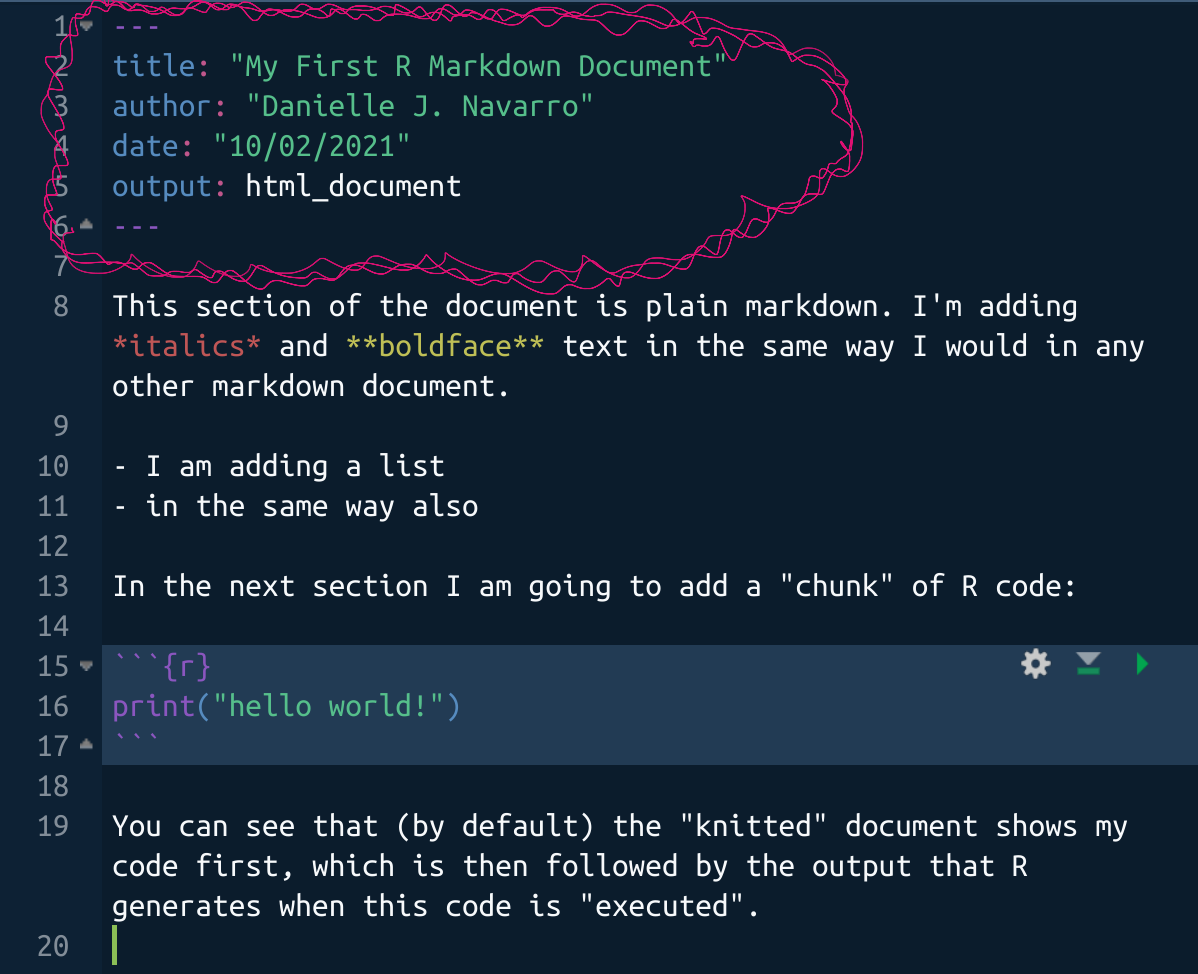

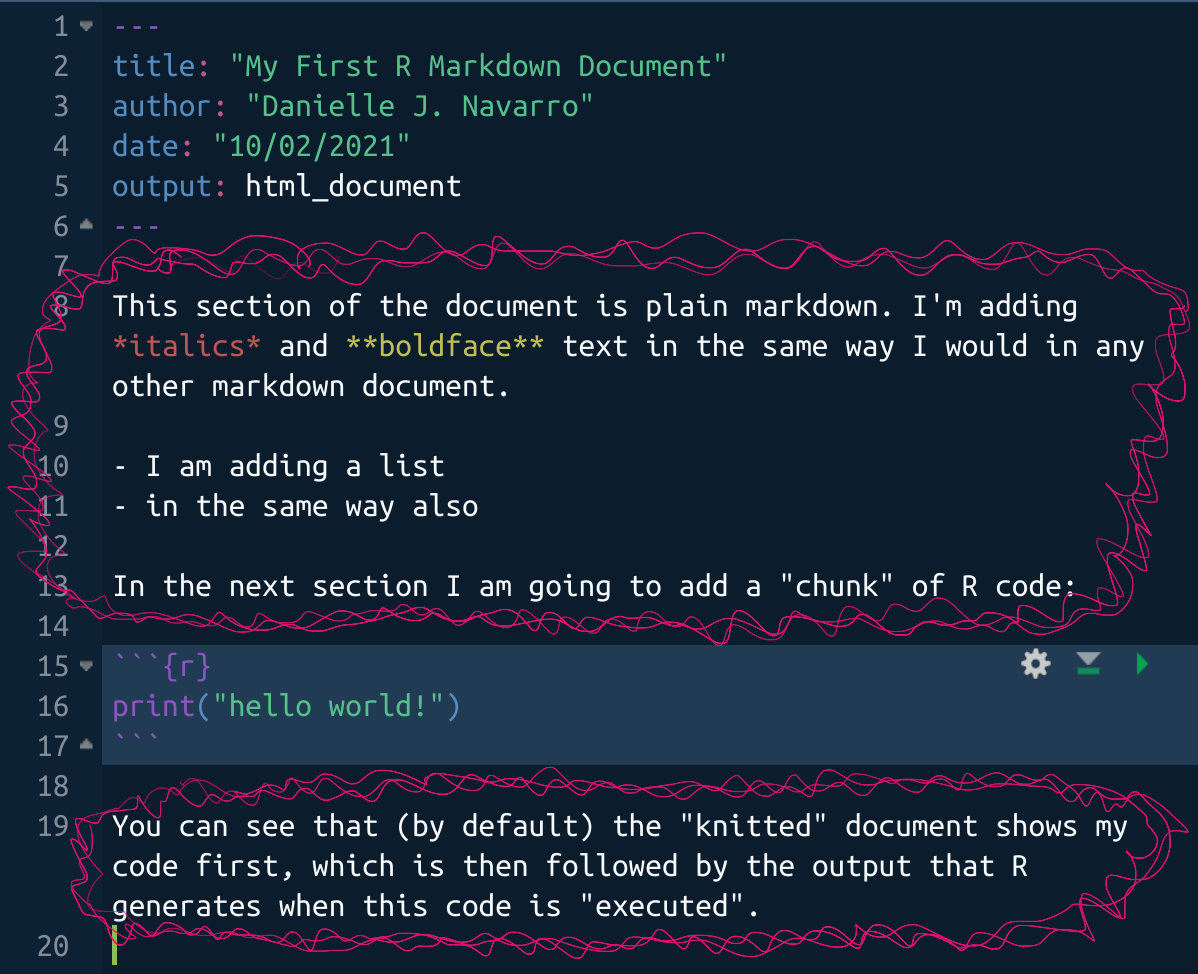

Let’s dissect the document we just wrote!

The part inside is the “YAML header”

Code chunk

The rest is markdown

The YAML header is used for customisation

Wait… what’s the YAML acronym?

  • Originally: “Yet Another Markup Language”
  • Later: “YAML Ain’t Markup Language”
  • … it really doesn’t matter 🙄

Output HTML only


title: "My First R Markdown Document"
author: "Jason Geller"
date: "9/15/2021"
output: html_document

Output HTML and PDF


title: "My First R Markdown Document"
author: "Jason Geller"
date: "09/15/2023"
output:
  pdf_document: default
  html_document: default

- Notice the indentation - YAML is very picky about this

Themes for HTML documents


output:
  html_document:
    theme: readabl

Possible themes: default, cerulean, journal, flatly, darkly, readable, spacelab, united, cosmo, lumen, paper, sandstone, simplex, yeti

Table of contents

output:
  html_document:
    toc: true
    toc_float: true
  • Practice editing the YAML header
  • Try creating different outputs and themes
  • Try creating a floating table of contents
  • Try to get it to not float!

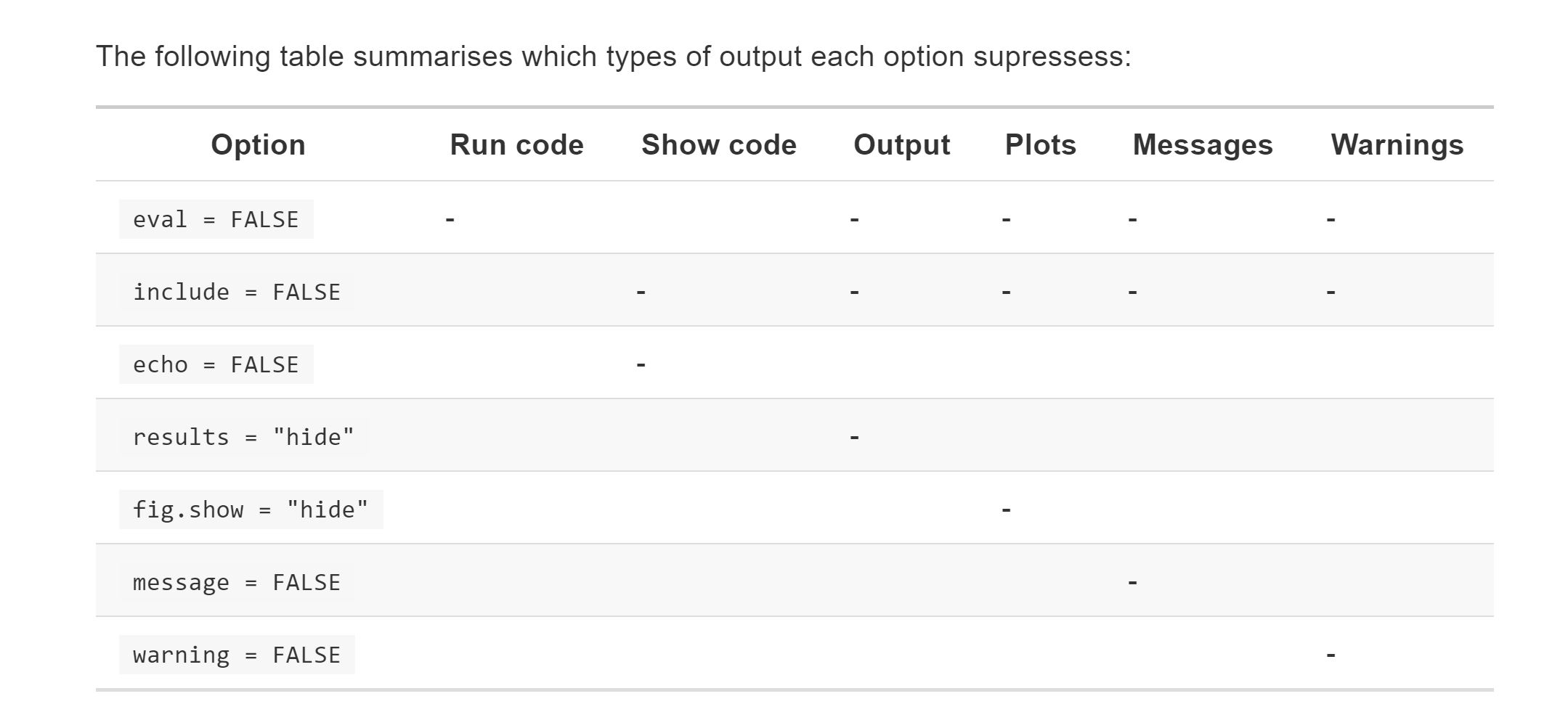

Code chunks

Equations

An overview

  • Anything inside dollar signs $ is treated as “inline” maths
  • $$ is a standalone equation
  • Whitespace matters: $x$ is an equation, $x $ is not
  • Equations follow “LaTeX” rules

Equations are special

  • This \(x^2\) is inline

  • This equation is standalone \[\bar{x} = \frac{1}{n} \sum_{i=1}^{n} x_i\]

R markdown advantages

  • Explicitly link R code to output

  • Wide variety of formats

  • Increases transparency

  • Increases efficiency

Hello Quarto!

  • Quarto is the next generation of RMarkdown

Big universe

  • RMarkdown for EVERYONE

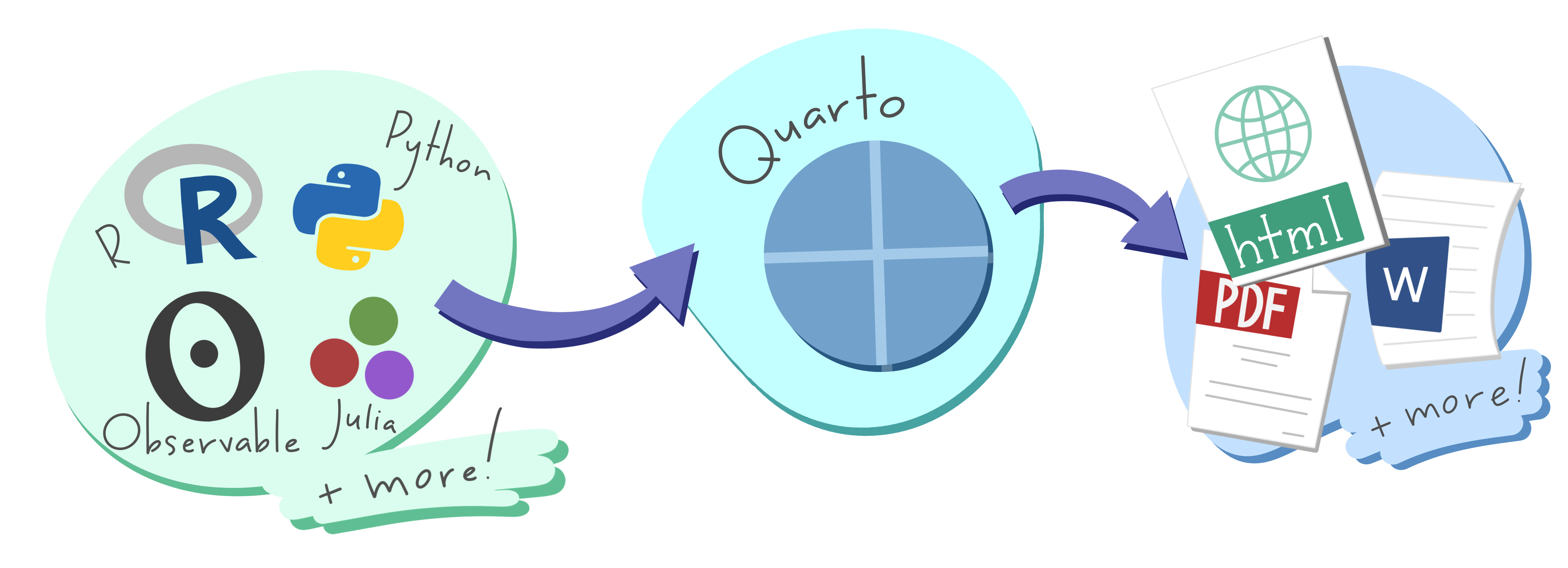

What is a Quarto?

Formatting

Visual editor

  • One fairly new feature (and one reason we’re using RStudio today!) is their new visual markdown editor. It’s basically an ultra powerful hybrid of Markdown and Microsoft Word. But be warned, it’s a little buggy if you frequently switch editing modes.

  • People write whole books in Markdown, and this may make that seem a little more achievable. For example, the new visual editor allows easy citation management with a Zotero library

Header 1

  • Using a single # gives you a really large header!

Header 2

  • Using two gives you a slightly smaller header!

Header 3

…and on

Header 4

…and on

Header 5

…and on

Lists

You may also want to use a bulleted list!

  • just
  • like
  • this
  • one

  1. like

  2. this

  3. one

Emphasis

  • To emphasize your point you might want to use italics or bold.

  • To have something appear as code (using a monospace font), surround everything that is code with ticks `like this`, so that it shows up like this.

Code Blocks

  • One of the most useful things about markdown documents like this is that you can intersperse your writing with code!

For example, this R code:

# reticulate library allows you to run both
# R and python in the same .qmd
library(reticulate)
#install_miniconda() # to install python
fruits = ['apple', 'banana', 'cherry']

fruits[0]
'apple'

Callout blocks

  • Call-out blocks highlight sections of text that interrupt the flow of your regular text. Maybe it’s a definition, a warning, or a sidenote

  • When rendering your document to HTML, callout blocks are interactive and can be collapsed and opened.

    My First Callout Block!

    Say things here

Callout blocks

Note

Note that there are five types of callouts, including: note, tip, warning, caution, and important.

Callout blocks

Warning

Callouts provide a simple way to attract attention, for example, to this warning.

This is important

Danger, callouts will really improve your writing.

Tip with caption

Caution, under construction

Here is something under construction

Callout markdown syntax

Expand To Learn About Collapse

This is an example of a ‘folded’ caution callout that can be expanded by the user. You can use `collapse=“true”` to collapse it by default or `collapse=“false”` to make a collapsible callout that is expanded by default.

Code chunks

  • {r, eval=TRUE} has been replaced with #| eval = TRUE
print("Don't Run Me")
[1] "Don't Run Me"

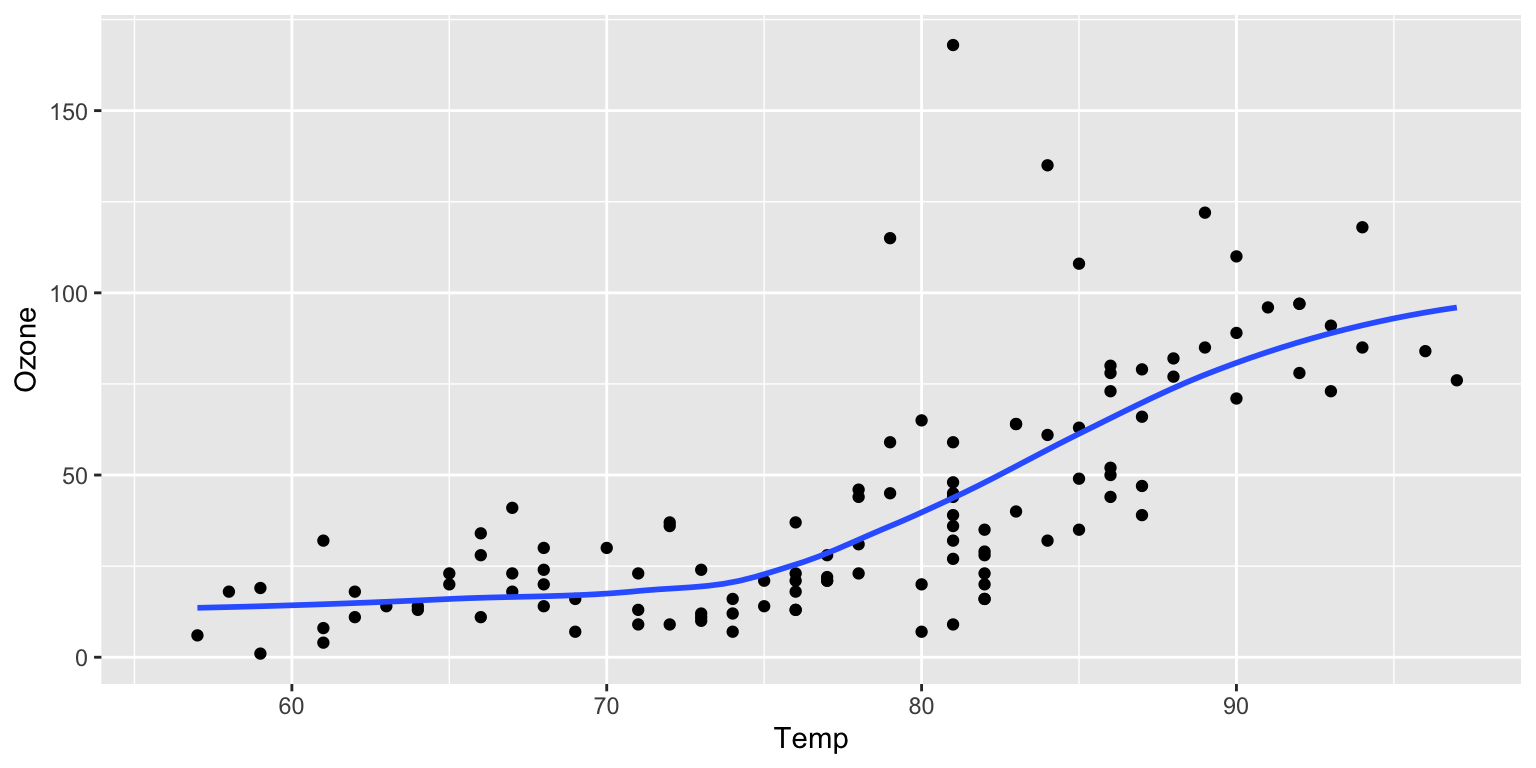

Tabsets

Split up and flip between sections of a page, alternative to just two columns

library(ggplot2)
fig = ggplot(airquality, aes(Temp, Ozone)) +
  geom_point() +
  geom_smooth(method = "loess", se = FALSE)
fig

Cheat Sheets

  • https://www.markdownguide.org/cheat-sheet/
  • https://rstudio.github.io/cheatsheets/html/quarto.html

Papaja

Installing papaja

# Install latest CRAN release
#install.packages("papaja")

# Install remotes package if necessary
#if(!requireNamespace("remotes", quietly = TRUE)) install.packages("remotes")

# Install the stable development version from GitHub
#remotes::install_github("crsh/papaja")

# Install the latest development snapshot from GitHub
#emotes::install_github("crsh/papaja@devel")

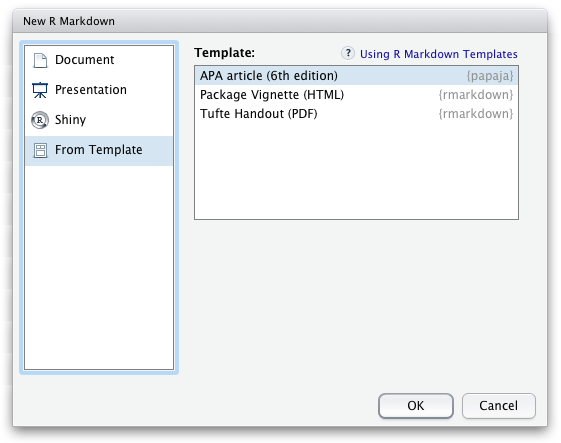

Open papaja

APAQUARTO

  • Quarto version of PAPAJA

    • Still in active development

Papaja videos

Acknowledgments

  • Slides partially influenced by the queen Danielle J Navarro
